Characteristics of Chongqing Cummins generator set

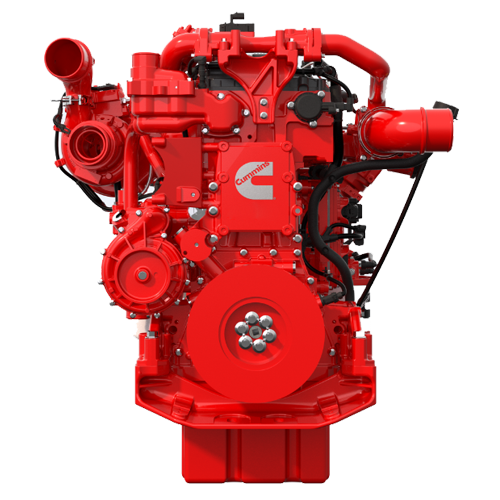

First, the structural advantages of diesel engine

1. Advanced design and excellent manufacturing, adapt to severe working conditions, and have strong ability of high intensity and heavy load operation.
2. Holset wastegate has better power performance.
3. The integrated design of cylinder block, cylinder head and other parts "one piece of multi-function" reduces the number of connecting parts. The parts are 40% less than other similar engines, and the failure rate is greatly reduced.
4. Excellent reliability adopts forged steel camshaft and crankshaft, high strength cylinder block design, many parts are cast on the cylinder block, with high rigidity, high pressure resistance and long service life.
5. Rotor high pressure fuel pump, less energy loss, stronger power, lower fuel consumption, and effectively reduce noise.

Second, service advantages

Record the customer's fault, deal with the corresponding problems, and inform the customer of the exact time to visit. To make three kinds of commitments: to establish a 6-hour service commitment in the Pearl River Delta; to make a 12-hour service commitment in Guangdong Province; to make a 24-hour service commitment in six provinces of South China; to make a professional plan and inform customers in a timely manner after the Department studies the remote mountainous areas and special locations.

Chongqing Cummins series units in each power stage

/200KW-1000KW

200KW 220KW 250KW 300KW 350KW 400KW 450KW 500KW 550KW 600KW 650KW 700KW 750KW 800KW 900KW 1000KW

Parameter list of each power section of Chongqing Cummins series diesel generator set

Open shelf model

Unit model:VGF-CKKJ-200
Main power:231KWReserve power:254KW
Current:415ADiesel engine model:NT855-GA
Number of cylinders:6(PCS)Bore x stroke:140*152mm
Fuel consumption power:206g/kw.hUnit size:2900/1863/1000mm L/W/H
Unit weight:2650kg
Unit model:VGF-CKKJ-220
Main power:220KWReserve power:242KW
Current:396ADiesel engine model:MTA11-G2A
Number of cylinders:6(PCS)Bore x stroke:125*147mm
Fuel consumption power:200g/kw.hUnit size:2900/1863/1000mm L/W/H
Unit weight:2750kg
Unit model:VGF-CKKJ-250
Main power:250KWReserve power:275KW
Current:450ADiesel engine model:MTAA11-G3
Number of cylinders:6(PCS)Bore x stroke:125*147mm
Fuel consumption power:188g/kw.hUnit size:2900/1863/1100mm L/W/H
Unit weight:3100kg
Unit model:VGF-CKKJ-300
Main power:312KWReserve power:343KW
Current:561ADiesel engine model:NTA855-G2A
Number of cylinders:6(PCS)Bore x stroke:140*152mm
Fuel consumption power:206g/kw.hUnit size:3100/1863/1100mm L/W/H
Unit weight:3350kg
Unit model:VGF-CKKJ-350
Main power:350KWReserve power:385KW
Current:630ADiesel engine model:QSNT-G3
Number of cylinders:6(PCS)Bore x stroke:159*159mm
Fuel consumption power:203g/kw.hUnit size:3150/1863/1100mm L/W/H
Unit weight:3680kg
Unit model:VGF-CKKJ-400
Main power:400KWReserve power:440KW
Current:720ADiesel engine model:KTA19-G3A
Number of cylinders:6(PCS)Bore x stroke:159*159mm
Fuel consumption power:203g/kw.hUnit size:3265/2030/1355mm L/W/H
Unit weight:4350kg
Unit model:VGF-CKKJ-450
Main power:470KWReserve power:555KW
Current:846ADiesel engine model:KTAA19-G5
Number of cylinders:6(PCS)Bore x stroke:159*159mm
Fuel consumption power:206g/kw.hUnit size:3150/2055/1500mm L/W/H
Unit weight:5300kg
Unit model:VGF-CKKJ-500
Main power:500KWReserve power:550KW
Current:900ADiesel engine model:KTA19-G8
Number of cylinders:6(PCS)Bore x stroke:159*159mm
Fuel consumption power:206g/kw.hUnit size:3550/2055/1500mm L/W/H
Unit weight:5450kg
Unit model:VGF-CKKJ-550
Main power:550KWReserve power:605KW
Current:990ADiesel engine model:KT38-G
Number of cylinders:12(PCS)Bore x stroke:159*159mm
Fuel consumption power:210g/kw.hUnit size:3600/2055/1500mm L/W/H
Unit weight:5800kg
Unit model:VGF-CKKJ-600
Main power:600KWReserve power:660KW
Current:1080ADiesel engine model:KT38-GA
Number of cylinders:12(PCS)Bore x stroke:159*159mm
Fuel consumption power:210g/kw.hUnit size:4400/2475/2010mm L/W/H
Unit weight:8650kg
Unit model:VGF-CKKJ-650
Main power:664KWReserve power:731KW
Current:1195ADiesel engine model:KTA38-G2
Number of cylinders:12(PCS)Bore x stroke:159*159mm
Fuel consumption power:206g/kw.hUnit size:4400/2475/2010mm L/W/H
Unit weight:6980kg
Unit model:VGF-CKKJ-700
Main power:711KWReserve power:789KW
Current:1279ADiesel engine model:KTA38-G2B
Number of cylinders:12(PCS)Bore x stroke:159*159mm
Fuel consumption power:206g/kw.hUnit size:4400/2475/2010mm L/W/H
Unit weight:7100kg
Unit model:VGF-CKKJ-750
Main power:750KWReserve power:895KW
Current:1350ADiesel engine model:KTA38-G2A
Number of cylinders:12(PCS)Bore x stroke:159*159mm
Fuel consumption power:210g/kw.hUnit size:4400/2010/2475mm L/W/H
Unit weight:7300kg
Unit model:VGF-CKKJ-800
Main power:880KWReserve power:970KW
Current:1584ADiesel engine model:KTA38-G5
Number of cylinders:12(PCS)Bore x stroke:159*159mm
Fuel consumption power:201g/kw.hUnit size:4540/2475/2010mm L/W/H
Unit weight:7450kg
Unit model:VGF-CKKJ-900
Main power:991KWReserve power:1090KW
Current:1783ADiesel engine model:KTA38-G9
Number of cylinders:12(PCS)Bore x stroke:159*159mm
Fuel consumption power:201g/kw.hUnit size:4600/2475/2010mm L/W/H
Unit weight:7650kg
Unit model:VGF-CKKJ-1000
Main power:1097KWReserve power:1227KW
Current:1974ADiesel engine model:KTA50-G3
Number of cylinders:16(PCS)Bore x stroke:159*159mm
Fuel consumption power:202g/kw.hUnit size:5100/2550/2100mm L/W/H
Unit weight:9200kg
200KW 220KW 250KW 300KW 350KW 400KW 450KW 500KW 550KW 600KW 650KW 700KW 750KW 800KW 900KW 1000KW

Parameter list of each power section of Weichai series diesel generator set

Silent model

Unit model:VGF-CKJY-200
Main power:231KWReserve power:254KW
Current:415ADiesel engine model:NT855-GA
Number of cylinders:6(PCS)Bore x stroke:140*152mm
Fuel consumption power:206g/kw.hUnit size:3900/1950/1300mm L/W/H
Unit weight:3550kg
Unit model:VGF-CKJY-220
Main power:220KWReserve power:242KW
Current:396ADiesel engine model:MTA11-G2A
Number of cylinders:6(PCS)Bore x stroke:125*147mm
Fuel consumption power:200g/kw.hUnit size:3900/1950/1300mm L/W/H
Unit weight:3650kg
Unit model:VGF-CKJY-250
Main power:250KWReserve power:275KW
Current:450ADiesel engine model:MTAA11-G3
Number of cylinders:6(PCS)Bore x stroke:125*147mm
Fuel consumption power:188g/kw.hUnit size:3900/1950/1300mm L/W/H
Unit weight:3950kg
Unit model:VGF-CKJY-300
Main power:312KWReserve power:343KW
Current:561ADiesel engine model:NTA855-G2A
Number of cylinders:6(PCS)Bore x stroke:140*152mm
Fuel consumption power:206g/kw.hUnit size:4100/1950/1350mm L/W/H
Unit weight:4250kg
Unit model:VGF-CKJY-350
Main power:350KWReserve power:385KW
Current:630ADiesel engine model:QSNT-G3
Number of cylinders:6(PCS)Bore x stroke:159*159mm
Fuel consumption power:203g/kw.hUnit size:4200/1950/1350mm L/W/H
Unit weight:4750kg
Unit model:VGF-CKJY-400
Main power:400KWReserve power:440KW
Current:720ADiesel engine model:KTA19-G3A
Number of cylinders:6(PCS)Bore x stroke:159*159mm
Fuel consumption power:203g/kw.hUnit size:4350/2250/1800mm L/W/H
Unit weight:5550kg
Unit model:VGF-CKJY-450
Main power:470KWReserve power:555KW
Current:846ADiesel engine model:KTAA19-G5
Number of cylinders:6(PCS)Bore x stroke:159*159mm
Fuel consumption power:206g/kw.hUnit size:4750/2300/1850mm L/W/H
Unit weight:6650kg
Unit model:VGF-CKJY-500
Main power:500KWReserve power:550KW
Current:900ADiesel engine model:KTA19-G8
Number of cylinders:6(PCS)Bore x stroke:159*159mm
Fuel consumption power:206g/kw.hUnit size:4750/2300/1850mm L/W/H
Unit weight:6800kg
Unit model:VGF-CKJY-550
Main power:550KWReserve power:605KW
Current:990ADiesel engine model:KT38-G
Number of cylinders:12(PCS)Bore x stroke:159*159mm
Fuel consumption power:210g/kw.hUnit size:4750/2300/1850mm L/W/H
Unit weight:7150kg
Unit model:VGF-CKJY-600
Main power:600KWReserve power:660KW
Current:1080ADiesel engine model:KT38-GA
Number of cylinders:12(PCS)Bore x stroke:159*159mm
Fuel consumption power:210g/kw.hUnit size:5700/2750/2500mm L/W/H
Unit weight:8650kg
Unit model:VGF-CKJY-650
Main power:664KWReserve power:731KW
Current:1195ADiesel engine model:KTA38-G2
Number of cylinders:12(PCS)Bore x stroke:159*159mm
Fuel consumption power:206g/kw.hUnit size:5700/2750/2500mm L/W/H
Unit weight:8730kg
Unit model:VGF-CKJY-700
Main power:711KWReserve power:789KW
Current:1279ADiesel engine model:KTA38-G2B
Number of cylinders:12(PCS)Bore x stroke:159*159mm
Fuel consumption power:206g/kw.hUnit size:5700/2750/2500mm L/W/H
Unit weight:8850kg
Unit model:VGF-CKJY-750
Main power:813KWReserve power:895KW
Current:1463ADiesel engine model:KTA38-G2A
Number of cylinders:12(PCS)Bore x stroke:159*159mm
Fuel consumption power:210g/kw.hUnit size:5700/2750/2500mm L/W/H
Unit weight:9100kg
Unit model:VGF-CKJY-800
Main power:880KWReserve power:970KW
Current:1584ADiesel engine model:KTA38-G5
Number of cylinders:12(PCS)Bore x stroke:159*159mm
Fuel consumption power:201g/kw.hUnit size:5900/2750/2500mm L/W/H
Unit weight:9450kg
Unit model:VGF-CKJY-900
Main power:991KWReserve power:1090KW
Current:1783ADiesel engine model:KTA38-G9
Number of cylinders:12(PCS)Bore x stroke:159*159mm
Fuel consumption power:201g/kw.hUnit size:5950/2750/2500mm L/W/H
Unit weight:9650kg
Unit model:VGF-CKJY-1000
Main power:1097KWReserve power:1227KW
Current:1974ADiesel engine model:KTA50-G3
Number of cylinders:16(PCS)Bore x stroke:159*159mm
Fuel consumption power:202g/kw.hUnit size:6500/2850/2700mm L/W/H
Unit weight:11800kg
