Introduction of Weichai Power Series

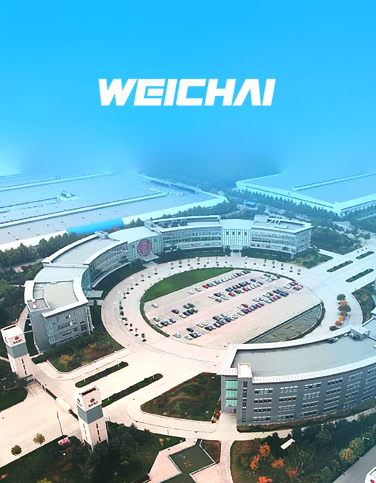

Weichai Power Co., Ltd. (hk2338, sz0000338), founded in 2002, is the first company in China's internal combustion engine industry to be listed on H shares in Hong Kong. In 2010, it has been the largest supplier of high-speed and high-power engines in the world. In 2016, it ranked 79th among the top 500 Chinese enterprises.

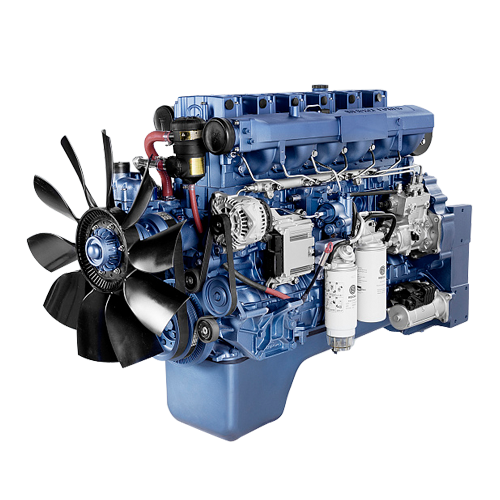

Since the launch of the blue engine, Weichai Power has been widely recognized for its high efficiency, energy saving and environmental protection. Under the development of blue engine n, l series diesel engine, to meet the market demand for low speed engine. The breakthrough in power, reliability, economy and environmental protection is realized.

Characteristics of Weichai Power Generating Set

The performance of the unit is stable and reliable

Low fuel consumption, low emission and low noise

the diesel generator set adopts rotary diesel, oil filter and dry air filter

the unit is durable, compact and easy to operate

in addition to water-cooled units, the products also have air-cooled units and oil-cooled units which are difficult to water supply and start-up

full range of product specifications and varieties

compact structure, small size and light weight

stable and reliable performance with a fault free interval of 6500 hours

the general maintenance is easy, and the operation technology is gradually familiar to Chinese customers

pay attention to environmental protection requirements, low emission pollution, meet the most stringent emission regulations in Europe and North America

excellent durability, long service life and overhaul time up to 20000 hours

Weichai Power Series units of each power section

20KW 25KW 30KW 40KW 50KW 64KW 80KW 100KW 120KW 150KW 200KW 250KW 300KW 350KW 400KW 500KW 550KW 600KW 650KW 750KW 800KW 900KW 1000KW

Parameter list of each power section of Weichai Power Series Diesel Generator Set

Open stype

Unit model:VGF-WCKJ-20
Main power:23KW	Reserve power:25KW
Current:41A	Diesel engine model:WP2.3D25E200
Number of cylinders:4(individual)	Bore x stroke:89*92mm
Fuel consumption power:227g/kw.h	Unit size:1650/1150/550mm L/W/H
Unit weight:500kg
Unit model:VGF-WCKJ-25
Main power:30KW	Reserve power:33KW
Current:54A	Diesel engine model:WP2.3D33E200
Number of cylinders:4(PCS)	Bore x stroke:89*92mm
Fuel consumption power:215g/kw.h	Unit size:1650/1150/550mm L/W/H
Unit weight:550kg
Unit model:VGF-WCKJ-30
Main power:36KW	Reserve power:40KW
Current:64A	Diesel engine model:WP2.3D40E200
Number of cylinders:4(PCS)	Bore x stroke:89*92mm
Fuel consumption power:215g/kw.h	Unit size:1700/1200/600mm L/W/H
Unit weight:590kg
Unit model:VGF-WCKJ-40
Main power:44KW	Reserve power:48KW
Current:79A	Diesel engine model:WP2.3D48E200
Number of cylinders:4(PCS)	Bore x stroke:89*92mm
Fuel consumption power:220g/kw.h	Unit size:1750/1250/650mm L/W/H
Unit weight:690kg
Unit model:VGF-WCKJ-50
Main power:60KW	Reserve power:66KW
Current:108A	Diesel engine model:WP4.1D66E200
Number of cylinders:4(PCS)	Bore x stroke:105*118mm
Fuel consumption power:210g/kw.h	Unit size:1900/1250/650mm L/W/H
Unit weight:760kg
Unit model:VGF-WCKJ-64
Main power:72KW	Reserve power:80KW
Current:129A	Diesel engine model:WP4.1D80E200
Number of cylinders:4(PCS)	Bore x stroke:105*118mm
Fuel consumption power:210g/kw.h	Unit size:1900/1250/650mm L/W/H
Unit weight:790kg
Unit model:VGF-WCKJ-80
Main power:90KW	Reserve power:100KW
Current:162A	Diesel engine model:WP4.1D100E200
Number of cylinders:4(PCS)	Bore x stroke:105*118mm
Fuel consumption power:204g/kw.h	Unit size:2200/1350/750mm L/W/H
Unit weight:1250kg
Unit model:VGF-WCKJ-100
Main power:120KW	Reserve power:132KW
Current:216A	Diesel engine model:WP6D132E200
Number of cylinders:6(PCS)	Bore x stroke:105*130mm
Fuel consumption power:200g/kw.h	Unit size:2300/1350/750mm L/W/H
Unit weight:1300kg
Unit model:VGF-WCKJ-120
Main power:138KW	Reserve power:152KW
Current:248A	Diesel engine model:WP6D152E200
Number of cylinders:6(PCS)	Bore x stroke:105*130mm
Fuel consumption power:200g/kw.h	Unit size:2450/1450/850mm L/W/H
Unit weight:1450kg
Unit model:VGF-WCKJ-150
Main power:152KW	Reserve power:167KW
Current:273A	Diesel engine model:WP6D167E200
Number of cylinders:6(PCS)	Bore x stroke:105*130mm
Fuel consumption power:201g/kw.h	Unit size:2500/1450/900mm L/W/H
Unit weight:1580kg
Unit model:VGF-WCKJ-200
Main power:216KW	Reserve power:238KW
Current:388A	Diesel engine model:WP10D238E200
Number of cylinders:6(PCS)	Bore x stroke:126*130mm
Fuel consumption power:198g/kw.h	Unit size:2750/1550/970mm L/W/H
Unit weight:2100kg
Unit model:VGF-WCKJ-250
Main power:290KW	Reserve power:320KW
Current:522A	Diesel engine model:WP10D320E200
Number of cylinders:6(PCS)	Bore x stroke:126*130mm
Fuel consumption power:198g/kw.h	Unit size:2850/1650/1050mm L/W/H
Unit weight:2450kg
Unit model:VGF-WCKJ-300
Main power:350KW	Reserve power:385KW
Current:630A	Diesel engine model:WP13D385E200
Number of cylinders:6(PCS)	Bore x stroke:127*165mm
Fuel consumption power:197g/kw.h	Unit size:2850/1750/1050mm L/W/H
Unit weight:2900kg
Unit model:VGF-WCKJ-350
Main power:368KW	Reserve power:405KW
Current:662A	Diesel engine model:WP13D405E200
Number of cylinders:6(PCS)	Bore x stroke:127*168mm
Fuel consumption power:197g/kw.h	Unit size:3100/1890/1250mm L/W/H
Unit weight:3100kg
Unit model:VGF-WCKJ-400
Main power:468KW	Reserve power:518KW
Current:842A	Diesel engine model:WHM6160D518-5
Number of cylinders:6(PCS)	Bore x stroke:160*200mm
Fuel consumption power:192g/kw.h	Unit size:3250/2050/1300mm L/W/H
Unit weight:3550kg
Unit model:VGF-WCKJ-500
Main power:568KW	Reserve power:628KW
Current:1022A	Diesel engine model:WHM6160MD628-5
Number of cylinders:6(PCS)	Bore x stroke:160*216mm
Fuel consumption power:192g/kw.h	Unit size:3500/2150/1500mm L/W/H
Unit weight:4950kg
Unit model:VGF-WCKJ-550
Main power:575KW	Reserve power:633KW
Current:1035A	Diesel engine model:6M33D633E200
Number of cylinders:6(PCS)	Bore x stroke:150*185mm
Fuel consumption power:210g/kw.h	Unit size:3500/2150/1500mm L/W/H
Unit weight:5250kg
Unit model:VGF-WCKJ-600
Main power:680KW	Reserve power:748KW
Current:1224A	Diesel engine model:12M26D748E200
Number of cylinders:12(PCS)	Bore x stroke:150*150mm
Fuel consumption power:210g/kw.h	Unit size:4000/2300/1700mm L/W/H
Unit weight:6500kg
Unit model:VGF-WCKJ-650
Main power:720KW	Reserve power:792KW
Current:1296A	Diesel engine model:12M26D792E200
Number of cylinders:12(PCS)	Bore x stroke:150*150mm
Fuel consumption power:210g/kw.h	Unit size:4000/2300/1700mm L/W/H
Unit weight:6700kg
Unit model:VGF-WCKJ-750
Main power:820KW	Reserve power:902KW
Current:1476A	Diesel engine model:12M26D902E200
Number of cylinders:12(PCS)	Bore x stroke:150*150mm
Fuel consumption power:210g/kw.h	Unit size:4200/2300/1850mm L/W/H
Unit weight:7100kg
Unit model:VGF-WCKJ-800
Main power:880KW	Reserve power:968KW
Current:1584A	Diesel engine model:12M26D968E200
Number of cylinders:12(PCS)	Bore x stroke:150*150mm
Fuel consumption power:210g/kw.h	Unit size:4200/2300/1850mm L/W/H
Unit weight:7300kg
Unit model:VGF-WCKJ-900
Main power:1007KW	Reserve power:1108KW
Current:1812A	Diesel engine model:12M33D1108E200
Number of cylinders:12(PCS)	Bore x stroke:150*185mm
Fuel consumption power:210g/kw.h	Unit size:4300/2350/1950mm L/W/H
Unit weight:7500kg
Unit model:VGF-WCKJ-1000
Main power:1100KW	Reserve power:1210KW
Current:1980A	Diesel engine model:12M33D1210E200
Number of cylinders:12(PCS)	Bore x stroke:150*185mm
Fuel consumption power:210g/kw.h	Unit size:4400/2450/2100mm L/W/H
Unit weight:8500kg

Unit model	Output power（KW）		Current（A）	Diesel engine model	Number of cylinders	Bore x stroke（mm）	Fuel consumption power（g/kw.h ）	Unit size（mm L/W/H ）	Unit weight（kg）
Unit model	Active	Spare	Current（A）	Diesel engine model	Number of cylinders	Bore x stroke（mm）	Fuel consumption power（g/kw.h ）	Unit size（mm L/W/H ）	Unit weight（kg）
VGF-WCKJ-20	23	25	41	WP2.3D25E200	4	89*92	227	1650/1150/550	500
VGF-WCKJ-25	30	33	54	WP2.3D33E200	4	89*92	215	1650/1150/550	550
VGF-WCKJ-30	36	40	64	WP2.3D40E200	4	89*92	215	1700/1200/600	590
VGF-WCKJ-40	44	48	79	WP2.3D48E200	4	89*92	220	1750/1250/650	690
VGF-WCKJ-50	60	66	108	WP4.1D66E200	4	105*118	210	1900/1250/650	760
VGF-WCKJ-64	72	80	129	WP4.1D80E200	4	105*118	210	1900/1250/650	790
VGF-WCKJ-80	90	100	162	WP4.1D100E200	4	105*118	204	2200/1350/750	1250
VGF-WCKJ-100	120	132	216	WP6D132E200	6	105*130	200	2300/1350/750	1300
VGF-WCKJ-120	138	152	248	WP6D152E200	6	105*130	200	2450/1450/850	1450
VGF-WCKJ-150	152	167	273	WP6D167E200	6	105*130	201	2500/1450/900	1580
VGF-WCKJ-200	216	238	388	WP10D238E200	6	126*130	198	2750/1550/970	2100
VGF-WCKJ-250	290	320	522	WP10D320E200	6	126*130	198	2850/1650/1050	2450
VGF-WCKJ-300	350	385	630	WP13D385E200	6	127*165	197	2850/1750/1050	2900
VGF-WCKJ-350	368	405	662	WP13D405E200	6	127*168	197	3100/1890/1250	3100
VGF-WCKJ-400	468	518	842	WHM6160D518-5	6	160*200	192	3250/2050/1300	3550
VGF-WCKJ-500	568	628	1022	WHM6160MD628-5	6	160*216	192	3500/2150/1500	4950
VGF-WCKJ-550	575	633	1035	6M33D633E200	6	150*185	210	3500/2150/1500	5250
VGF-WCKJ-600	680	748	1224	12M26D748E200	12	150*150	210	4000/2300/1700	6500
VGF-WCKJ-650	720	792	1296	12M26D792E200	12	150*150	210	4000/2300/1700	6700
VGF-WCKJ-750	820	902	1476	12M26D902E200	12	150*150	210	4200/2300/1850	7100
VGF-WCKJ-800	880	968	1584	12M26D968E200	12	150*150	210	4200/2300/1850	7300
VGF-WCKJ-900	1007	1108	1812	12M33D1108E200	12	150*185	210	4300/2350/1950	7500
VGF-WCKJ-1000	1100	1210	1980	12M33D1210E200	12	150*185	210	4400/2450/2100	8500

20KW 25KW 30KW 40KW 50KW 64KW 80KW 100KW 120KW 150KW 200KW 250KW 300KW 350KW 400KW 500KW 900KW 550KW 600KW 650KW 750KW 800KW 1000KW

Parameter list of each power section of Weichai series diesel generator set

Silent model

Unit model:VGF-WCJY-20
Main power:23KW	Reserve power:25KW
Current:41A	Diesel engine model:WP2.3D25E200
Number of cylinders:4(PCS)	Bore x stroke:89*92mm
Fuel consumption power:227g/kw.h	Unit size:2000/1250/950mm L/W/H
Unit weight:820kg
Unit model:VGF-WCJY-25
Main power:30KW	Reserve power:33KW
Current:54A	Diesel engine model:WP2.3D33E200
Number of cylinders:4(PCS)	Bore x stroke:89*92mm
Fuel consumption power:215g/kw.h	Unit size:2100/1250/980mm L/W/H
Unit weight:870kg
Unit model:VGF-WCJY-30
Main power:36KW	Reserve power:40KW
Current:64A	Diesel engine model:WP2.3D40E200
Number of cylinders:4(PCS)	Bore x stroke:89*92mm
Fuel consumption power:215g/kw.h	Unit size:2100/1300/980mm L/W/H
Unit weight:920kg
Unit model:VGF-WCJY-40
Main power:44KW	Reserve power:48KW
Current:79A	Diesel engine model:WP2.3D48E200
Number of cylinders:4(PCS)	Bore x stroke:89*92mm
Fuel consumption power:220g/kw.h	Unit size:2300/1300/1000mm L/W/H
Unit weight:1020kg
Unit model:VGF-WCJY-50
Main power:60KW	Reserve power:66KW
Current:108A	Diesel engine model:WP4.1D66E200
Number of cylinders:4(PCS)	Bore x stroke:105*118mm
Fuel consumption power:210g/kw.h	Unit size:2500/1350/1000mm L/W/H
Unit weight:1190kg
Unit model:VGF-WCJY-64
Main power:72KW	Reserve power:80KW
Current:129A	Diesel engine model:WP4.1D80E200
Number of cylinders:4(PCS)	Bore x stroke:105*118mm
Fuel consumption power:210g/kw.h	Unit size:2500/1350/1000mm L/W/H
Unit weight:1220kg
Unit model:VGF-WCJY-80
Main power:90KW	Reserve power:100KW
Current:162A	Diesel engine model:WP4.1D100E200
Number of cylinders:4(PCS)	Bore x stroke:105*118mm
Fuel consumption power:204g/kw.h	Unit size:2900/1550/1200mm L/W/H
Unit weight:1750kg
Unit model:VGF-WCJY-100
Main power:120KW	Reserve power:132KW
Current:216A	Diesel engine model:WP6D132E200
Number of cylinders:6(PCS)	Bore x stroke:105*130mm
Fuel consumption power:200g/kw.h	Unit size:2900/1550/1200mm L/W/H
Unit weight:1800kg
Unit model:VGF-WCJY-120
Main power:138KW	Reserve power:152KW
Current:248A	Diesel engine model:WP6D152E200
Number of cylinders:6(PCS)	Bore x stroke:105*130mm
Fuel consumption power:200g/kw.h	Unit size:3280/1650/1300mm L/W/H
Unit weight:1980kg
Unit model:VGF-WCJY-150
Main power:152KW	Reserve power:167KW
Current:273A	Diesel engine model:WP6D167E200
Number of cylinders:6(PCS)	Bore x stroke:105*130mm
Fuel consumption power:201g/kw.h	Unit size:3280/1650/1300mm L/W/H
Unit weight:2250kg
Unit model:VGF-WCJY-200
Main power:216KW	Reserve power:238KW
Current:388A	Diesel engine model:WP10D238E200
Number of cylinders:6(PCS)	Bore x stroke:126*130mm
Fuel consumption power:198g/kw.h	Unit size:3500/1950/1300mm L/W/H
Unit weight:2950kg
Unit model:VGF-WCJY-250
Main power:290KW	Reserve power:320KW
Current:522A	Diesel engine model:WP10D320E200
Number of cylinders:6(PCS)	Bore x stroke:126*130mm
Fuel consumption power:198g/kw.h	Unit size:3700/1950/1350mm L/W/H
Unit weight:3360kg
Unit model:VGF-WCJY-300
Main power:350KW	Reserve power:385KW
Current:630A	Diesel engine model:WP13D385E200
Number of cylinders:6(PCS)	Bore x stroke:127*165mm
Fuel consumption power:197g/kw.h	Unit size:3700/1950/1350mm L/W/H
Unit weight:3860kg
Unit model:VGF-WCJY-350
Main power:368KW	Reserve power:405KW
Current:662A	Diesel engine model:WP13D405E200
Number of cylinders:6(PCS)	Bore x stroke:127*165mm
Fuel consumption power:197g/kw.h	Unit size:3900/2100/1350mm L/W/H
Unit weight:4150kg
Unit model:VGF-WCJY-400
Main power:468KW	Reserve power:518KW
Current:842A	Diesel engine model:WHM6160D518-5
Number of cylinders:6(PCS)	Bore x stroke:160*200mm
Fuel consumption power:192g/kw.h	Unit size:4350/2250/1800mm L/W/H
Unit weight:4750kg
Unit model:VGF-WCJY-500
Main power:568KW	Reserve power:628KW
Current:1022A	Diesel engine model:WHM6160MD628-5
Number of cylinders:6(PCS)	Bore x stroke:160*216mm
Fuel consumption power:192g/kw.h	Unit size:4750/2300/1850mm L/W/H
Unit weight:6150kg
Unit model:VGF-WCJY-550
Main power:575KW	Reserve power:633KW
Current:1035A	Diesel engine model:6M33D633E200
Number of cylinders:6(PCS)	Bore x stroke:150*185mm
Fuel consumption power:210g/kw.h	Unit size:4750/2300/1850mm L/W/H
Unit weight:6550kg
Unit model:VGF-WCJY-600
Main power:680KW	Reserve power:748KW
Current:1224A	Diesel engine model:12M26D748E200
Number of cylinders:12(PCS)	Bore x stroke:150*150mm
Fuel consumption power:210g/kw.h	Unit size:5700/2750/2500mm L/W/H
Unit weight:8520kg
Unit model:VGF-WCJY-650
Main power:720KW	Reserve power:792KW
Current:1296A	Diesel engine model:12M26D792E200
Number of cylinders:12(PCS)	Bore x stroke:150*150mm
Fuel consumption power:210g/kw.h	Unit size:5700/2750/2500mm L/W/H
Unit weight:8700kg
Unit model:VGF-WCJY-750
Main power:820KW	Reserve power:902KW
Current:1476A	Diesel engine model:12M26D902E200
Number of cylinders:12(PCS)	Bore x stroke:150*150mm
Fuel consumption power:210g/kw.h	Unit size:5700/2750/2500mm L/W/H
Unit weight:8980kg
Unit model:VGF-WCJY-800
Main power:880KW	Reserve power:968KW
Current:1584A	Diesel engine model:12M26D968E200
Number of cylinders:12(PCS)	Bore x stroke:150*150mm
Fuel consumption power:210g/kw.h	Unit size:5700/2750/2500mm L/W/H
Unit weight:9230kg
Unit model:VGF-WCJY-900
Main power:1007KW	Reserve power:1108KW
Current:1812A	Diesel engine model:12M33D1108E200
Number of cylinders:12(PCS)	Bore x stroke:150*185mm
Fuel consumption power:210g/kw.h	Unit size:5900/2750/2500mm L/W/H
Unit weight:9680kg
Unit model:VGF-WCJY-1000
Main power:1100KW	Reserve power:1210KW
Current:1980A	Diesel engine model:12M33D1210E200
Number of cylinders:12(PCS)	Bore x stroke:150*185mm
Fuel consumption power:210g/kw.h	Unit size:5900/2750/2500mm L/W/H
Unit weight:11000kg

Unit model	Output powerKW）		Current（A）	Diesel engine model	Number of cylinders	Bore x stroke（mm）	Fuel consumption power（g/kw.h ）	Unit size（mm L/W/H ）	Unit weight（kg）
Unit model	Active	Spare	Current（A）	Diesel engine model	Number of cylinders	Bore x stroke（mm）	Fuel consumption power（g/kw.h ）	Unit size（mm L/W/H ）	Unit weight（kg）
VGF-WCJY-20	23	25	41	WP2.3D25E200	4	89*92	227	2000/1250/950	820
VGF-WCJY-25	30	33	54	WP2.3D33E200	4	89*92	215	2100/1250/980	870
VGF-WCJY-30	36	40	64	WP2.3D40E200	4	89*92	215	2100/1300/980	920
VGF-WCJY-40	44	48	79	WP2.3D48E200	4	89*92	220	2300/1300/1000	1020
VGF-WCJY-50	60	66	108	WP4.1D66E200	4	105*118	210	2500/1350/1000	1190
VGF-WCJY-64	72	80	129	WP4.1D80E200	4	105*118	210	2500/1350/1000	1220
VGF-WCJY-80	90	100	162	WP4.1D100E200	4	105*118	204	2900/1550/1200	1750
VGF-WCJY-100	120	132	216	WP6D132E200	6	105*130	200	2900/1550/1200	1800
VGF-WCJY-120	138	152	248	WP6D152E200	6	105*130	200	3280/1650/1300	1980
VGF-WCJY-150	152	167	273	WP6D167E200	6	105*130	201	3280/1650/1300	2250
VGF-WCJY-200	216	238	388	WP10D238E200	6	126*130	198	3500/1950/1300	2950
VGF-WCJY-250	290	320	522	WP10D320E200	6	126*130	198	3700/1950/1350	3360
VGF-WCJY-300	350	385	630	WP13D385E200	6	127*165	197	3700/1950/1350	3860
VGF-WCJY-350	368	405	662	WP13D405E200	6	127*165	197	3900/2100/1350	4150
VGF-WCJY-400	468	518	842	WHM6160D518-5	6	160*200	192	4350/2250/1800	4750
VGF-WCJY-500	568	628	1022	WHM6160MD628-5	6	160*216	192	4750/2300/1850	6150
VGF-WCJY-550	575	633	1035	6M33D633E200	6	150*185	210	4750/2300/1850	6550
VGF-WCJY-600	680	748	1224	12M26D748E200	12	150*150	210	5700/2750/2500	8520
VGF-WCJY-650	720	792	1296	12M26D792E200	12	150*150	210	5700/2750/2500	8700
VGF-WCJY-750	820	902	1476	12M26D902E200	12	150*150	210	5700/2750/2500	8980
VGF-WCJY-800	880	968	1584	12M26D968E200	12	150*150	210	5700/2750/2500	9230
VGF-WCJY-900	1007	1108	1812	12M33D1108E200	12	150*185	210	5900/2750/2500	9680
VGF-WCJY-1000	1100	1210	1980	12M33D1210E200	12	150*185	210	5900/2750/2500	11000
