Features of Yuchai power generating set

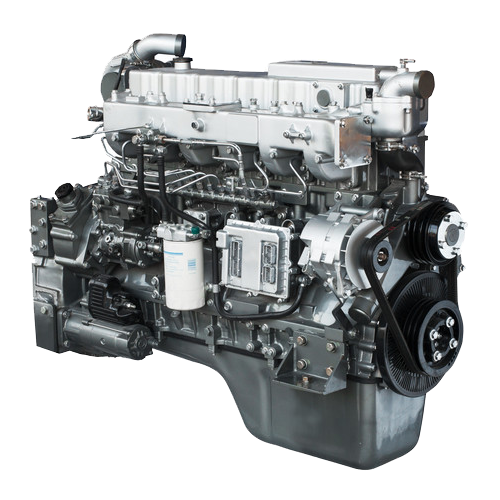

Yuchai began to develop and produce six cylinder diesel engine in 1981. Its stable and reliable quality has won the favor of customers. It has been listed as an energy-saving product by the state, and has established its brand status of "Yuchai machine, trump power". Its products have the following advantages:

1. Digesting and absorbing the consulting achievements of FEV company in Germany;

2. The engine block and cylinder head made of integral crankshaft alloy cast iron have small volume, light weight, high reliability, and the overhaul period is more than 10000 hours;

3. No. 1 reinforced high-pressure oil pump is adopted, with high fuel injection pressure and better fuel consumption index than domestic products of the same power level;

4. With Yuchai proprietary piston ring sealing technology, the lubricating oil consumption is more than 50% lower than that of domestic products of the same power level;

5. Optional electronic adjustable speed oil pump

Yuchai power series units of each power section

/40KW-1000KW

40KW 50KW 80KW 100KW 120KW 150KW 180KW 200KW 250KW 300KW 350KW 400KW 450KW 500KW 550KW 600KW 650KW 750KW 800KW 900KW 1000KW

Parameter list of each power section of Yuchai power series diesel generator set

Open type

Unit model:VGF-YCKJ-40
Main power:40KWReserve power:44KW
Current:72ADiesel engine model:YC4D60-D21
Number of cylinders:4(PCS)Bore x stroke:108*115mm
Fuel consumption power:205g/kw.hUnit size:1800/1150/600mm L/W/H
Unit weight:750kg
Unit model:VGF-YCKJ-50
Main power:60KWReserve power:66KW
Current:108ADiesel engine model:YC4D90Z-D21
Number of cylinders:4(PCS)Bore x stroke:108*115mm
Fuel consumption power:205g/kw.hUnit size:1900/1150/650mm L/W/H
Unit weight:830kg
Unit model:VGF-YCKJ-80
Main power:80KWReserve power:99KW
Current:144ADiesel engine model:YC6B135Z-D20
Number of cylinders:6(PCS)Bore x stroke:108*115mm
Fuel consumption power:202g/kw.hUnit size:2300/1220/800mm L/W/H
Unit weight:1350kg
Unit model:VGF-YCKJ-100
Main power:100KWReserve power:113KW
Current:180ADiesel engine model:YC6B155L-D21
Number of cylinders:6(PCS)Bore x stroke:108*125mm
Fuel consumption power:205g/kw.hUnit size:2350/1220/800mm L/W/H
Unit weight:1450kg
Unit model:VGF-YCKJ-120
Main power:120KWReserve power:132KW
Current:216ADiesel engine model:YC6B180L-D20
Number of cylinders:6(PCS)Bore x stroke:108*125mm
Fuel consumption power:200g/kw.hUnit size:2350/1220/800mm L/W/H
Unit weight:1550kg
Unit model:VGF-YCKJ-150
Main power:155KWReserve power:170KW
Current:279ADiesel engine model:YC6A230L-D20
Number of cylinders:6(PCS)Bore x stroke:108*132mm
Fuel consumption power:192g/kw.hUnit size:2500/1300/850mm L/W/H
Unit weight:1700kg
Unit model:VGF-YCKJ-180
Main power:192KWReserve power:211KW
Current:345ADiesel engine model:YC6MK285L-D20
Number of cylinders:6(PCS)Bore x stroke:123*145mm
Fuel consumption power:202g/kw.hUnit size:2900/1650/1020mm L/W/H
Unit weight:2200kg
Unit model:VGF-YCKJ-200
Main power:235KWReserve power:258KW
Current:423ADiesel engine model:YC6MK350L-D20
Number of cylinders:6(PCS)Bore x stroke:123*145mm
Fuel consumption power:195g/kw.hUnit size:2900/1650/1020mm L/W/H
Unit weight:2290kg
Unit model:VGF-YCKJ-250
Main power:281KWReserve power:309KW
Current:505ADiesel engine model:YC6MK420L-D20
Number of cylinders:6(PCS)Bore x stroke:123*145mm
Fuel consumption power:195g/kw.hUnit size:3000/1650/1140mm L/W/H
Unit weight:2750kg
Unit model:VGF-YCKJ-300
Main power:335KWReserve power:370KW
Current:603ADiesel engine model:YC6K500-D30
Number of cylinders:6(PCS)Bore x stroke:129*155mm
Fuel consumption power:203g/kw.hUnit size:3000/1650/1140mm L/W/H
Unit weight:2900kg
Unit model:VGF-YCKJ-350
Main power:368KWReserve power:405KW
Current:662ADiesel engine model:YC6T550L-D21
Number of cylinders:6(PCS)Bore x stroke:145*165mm
Fuel consumption power:195g/kw.hUnit size:3000/1650/1140mm L/W/H
Unit weight:3100kg
Unit model:VGF-YCKJ-400
Main power:400KWReserve power:485KW
Current:720ADiesel engine model:YC6T660L-D20
Number of cylinders:6(PCS)Bore x stroke:145*165mm
Fuel consumption power:195g/kw.hUnit size:3600/1750/1400mm L/W/H
Unit weight:3750kg
Unit model:VGF-YCKJ-450
Main power:500KWReserve power:550KW
Current:900ADiesel engine model:YC6T700L-D20
Number of cylinders:6(PCS)Bore x stroke:145*165mm
Fuel consumption power:195g/kw.hUnit size:3730/1910/1400mm L/W/H
Unit weight:3900kg
Unit model:VGF-YCKJ-500
Main power:560KWReserve power:616KW
Current:1008ADiesel engine model:YC6TD840L-D20
Number of cylinders:6(PCS)Bore x stroke:152*180mm
Fuel consumption power:195g/kw.hUnit size:3730/1910/1420mm L/W/H
Unit weight:4100kg
Unit model:VGF-YCKJ-550
Main power:605KWReserve power:665KW
Current:1089ADiesel engine model:YC6TD900-D31
Number of cylinders:6(PCS)Bore x stroke:152*180mm
Fuel consumption power:210g/kw.hUnit size:3900/2000/1600mm L/W/H
Unit weight:4200kg
Unit model:VGF-YCKJ-600
Main power:680KWReserve power:748KW
Current:1224ADiesel engine model:YC6C1020L-D20
Number of cylinders:6(PCS)Bore x stroke:200*210mm
Fuel consumption power:195g/kw.hUnit size:3900/2000/1650mm L/W/H
Unit weight:4500kg
Unit model:VGF-YCKJ-650
Main power:715KWReserve power:787KW
Current:1287ADiesel engine model:YC6C1070L-D20
Number of cylinders:6(PCS)Bore x stroke:200*210mm
Fuel consumption power:195g/kw.hUnit size:3900/2100/1650mm L/W/H
Unit weight:4800kg
Unit model:VGF-YCKJ-750
Main power:815KWReserve power:897KW
Current:1467ADiesel engine model:YC6C1220L-D20
Number of cylinders:6(PCS)Bore x stroke:200*210mm
Fuel consumption power:195g/kw.hUnit size:4000/2150/1650mm L/W/H
Unit weight:6700kg
Unit model:VGF-YCKJ-800
Main power:880KWReserve power:968KW
Current:1584ADiesel engine model:YC6C1320L-D20
Number of cylinders:6(PCS)Bore x stroke:200*210mm
Fuel consumption power:195g/kw.hUnit size:4000/2300/1750mm L/W/H
Unit weight:6900kg
Unit model:VGF-YCKJ-900
Main power:1016KWReserve power:1118KW
Current:1828ADiesel engine model:YC6C1520-D31
Number of cylinders:6(PCS)Bore x stroke:200*210mm
Fuel consumption power:212g/kw.hUnit size:4200/2600/1950mm L/W/H
Unit weight:7600kg
Unit model:VGF-YCKJ-1000
Main power:1000KWReserve power:1100KW
Current:1800ADiesel engine model:YC12VC1680-D31
Number of cylinders:12(PCS)Bore x stroke:200*210mm
Fuel consumption power:210g/kw.hUnit size:4800/2600/2000mm L/W/H
Unit weight:12000kg
40KW 50KW 120KW 150KW 180KW 200KW 80KW 100KW 250KW 300KW 350KW 400KW 450KW 500KW 550KW 600KW 650KW 750KW 800KW 900KW 1000KW

Parameter list of each power section of Weichai series diesel generator set

Silent type

Unit model:VGF-YCJY-40
Main power:40KWReserve power:44KW
Current:72ADiesel engine model:YC4D60-D21
Number of cylinders:4(PCS)Bore x stroke:108*115mm
Fuel consumption power:205g/kw.hUnit size:2300/1320/1000mm L/W/H
Unit weight:1050kg
Unit model:VGF-YCJY-50
Main power:60KWReserve power:66KW
Current:108ADiesel engine model:YC4D90Z-D21
Number of cylinders:4(PCS)Bore x stroke:108*115mm
Fuel consumption power:205g/kw.hUnit size:2500/1350/1000mm L/W/H
Unit weight:1150kg
Unit model:VGF-YCJY-80
Main power:90KWReserve power:99KW
Current:162ADiesel engine model:YC6B135Z-D20
Number of cylinders:6(PCS)Bore x stroke:108*115mm
Fuel consumption power:202g/kw.hUnit size:2800/1550/1100mm L/W/H
Unit weight:1750kg
Unit model:VGF-YCJY-100
Main power:103KWReserve power:113KW
Current:185ADiesel engine model:YC6B155L-D21
Number of cylinders:6(PCS)Bore x stroke:108*125mm
Fuel consumption power:205g/kw.hUnit size:2900/1550/1200mm L/W/H
Unit weight:1900kg
Unit model:VGF-YCJY-120
Main power:120KWReserve power:132KW
Current:216ADiesel engine model:YC6B180L-D20
Number of cylinders:6(PCS)Bore x stroke:108*125mm
Fuel consumption power:202g/kw.hUnit size:2900/1550/1200mm L/W/H
Unit weight:1980kg
Unit model:VGF-YCJY-150
Main power:155KWReserve power:170KW
Current:279ADiesel engine model:YC6A230L-D20
Number of cylinders:6(PCS)Bore x stroke:108*132mm
Fuel consumption power:192g/kw.hUnit size:3250/1650/1300mm L/W/H
Unit weight:2250kg
Unit model:VGF-YCJY-180
Main power:192KWReserve power:211KW
Current:345ADiesel engine model:YC6MK285L-D20
Number of cylinders:6(PCS)Bore x stroke:123*145mm
Fuel consumption power:202g/kw.hUnit size:3500/1950/1300mm L/W/H
Unit weight:2880kg
Unit model:VGF-YCJY-200
Main power:235KWReserve power:258KW
Current:423ADiesel engine model:YC6MK350L-D20
Number of cylinders:6(PCS)Bore x stroke:123*145mm
Fuel consumption power:195g/kw.hUnit size:3500/1950/1300mm L/W/H
Unit weight:3000kg
Unit model:VGF-YCJY-250
Main power:281KWReserve power:309KW
Current:505ADiesel engine model:YC6MK420L-D20
Number of cylinders:6(PCS)Bore x stroke:123*145mm
Fuel consumption power:195g/kw.hUnit size:3600/1950/1300mm L/W/H
Unit weight:3450kg
Unit model:VGF-YCJY-300
Main power:335KWReserve power:370KW
Current:603ADiesel engine model:YC6K500-D30
Number of cylinders:6(PCS)Bore x stroke:129*155mm
Fuel consumption power:203g/kw.hUnit size:3600/2030/1300mm L/W/H
Unit weight:3650kg
Unit model:VGF-YCJY-350
Main power:368KWReserve power:405KW
Current:662ADiesel engine model:YC6T550L-D21
Number of cylinders:6(PCS)Bore x stroke:145*165mm
Fuel consumption power:195g/kw.hUnit size:3700/2030/1300mm L/W/H
Unit weight:3850kg
Unit model:VGF-YCJY-400
Main power:441KWReserve power:485KW
Current:793ADiesel engine model:YC6T660L-D20
Number of cylinders:6(PCS)Bore x stroke:145*165mm
Fuel consumption power:195g/kw.hUnit size:4300/2250/1450mm L/W/H
Unit weight:4750kg
Unit model:VGF-YCJY-450
Main power:450KWReserve power:550KW
Current:810ADiesel engine model:YC6T700L-D20
Number of cylinders:6(PCS)Bore x stroke:145*165mm
Fuel consumption power:195g/kw.hUnit size:4700/2350/1500mm L/W/H
Unit weight:5100kg
Unit model:VGF-YCJY-500
Main power:560KWReserve power:616KW
Current:1008ADiesel engine model:YC6TD780L-D20
Number of cylinders:6(PCS)Bore x stroke:152*180mm
Fuel consumption power:195g/kw.hUnit size:4700/2350/1600mm L/W/H
Unit weight:5300kg
Unit model:VGF-YCJY-550
Main power:605KWReserve power:665KW
Current:1089ADiesel engine model:YC6TD900-D31
Number of cylinders:6(PCS)Bore x stroke:152*180mm
Fuel consumption power:210g/kw.hUnit size:4800/2450/1700mm L/W/H
Unit weight:5600kg
Unit model:VGF-YCJY-600
Main power:680KWReserve power:748KW
Current:1224ADiesel engine model:YC6C1020L-D20
Number of cylinders:6(PCS)Bore x stroke:200*210mm
Fuel consumption power:195g/kw.hUnit size:4800/2550/1800mm L/W/H
Unit weight:5900kg
Unit model:VGF-YCJY-650
Main power:715KWReserve power:787KW
Current:1287ADiesel engine model:YC6C1070L-D20
Number of cylinders:6(PCS)Bore x stroke:200*210mm
Fuel consumption power:195g/kw.hUnit size:4800/2550/1850mm L/W/H
Unit weight:6300kg
Unit model:VGF-YCJY-750
Main power:815KWReserve power:897KW
Current:1467ADiesel engine model:YC6C1220L-D20
Number of cylinders:6(PCS)Bore x stroke:200*210mm
Fuel consumption power:195g/kw.hUnit size:5200/2650/1900mm L/W/H
Unit weight:8500kg
Unit model:VGF-YCJY-800
Main power:880KWReserve power:968KW
Current:1584ADiesel engine model:YC6C1320L-D20
Number of cylinders:6(PCS)Bore x stroke:200*210mm
Fuel consumption power:195g/kw.hUnit size:5300/2750/2000mm L/W/H
Unit weight:9100kg
Unit model:VGF-YCJY-900
Main power:1016KWReserve power:1118KW
Current:1828ADiesel engine model:YC6C1520-D31
Number of cylinders:6(PCS)Bore x stroke:200*210mm
Fuel consumption power:212g/kw.hUnit size:5600/2850/2000mm L/W/H
Unit weight:9600kg
Unit model:VGF-YCJY-1000
Main power:1000KWReserve power:1100KW
Current:1800ADiesel engine model:YC12VC1680-D31
Number of cylinders:12(PCS)Bore x stroke:200*210mm
Fuel consumption power:210g/kw.hUnit size:6300/3000/2100mm L/W/H
Unit weight:15200kg
