Introduction of Weifang Power Series

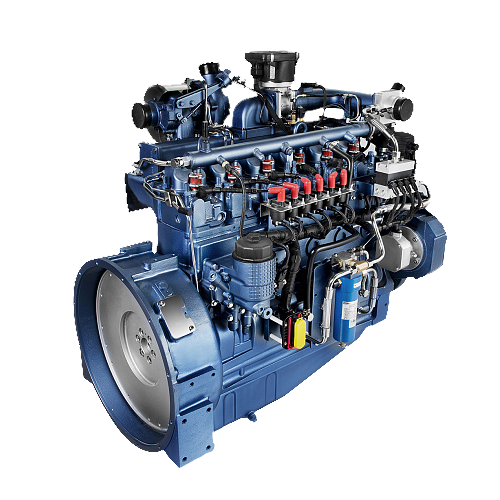

Weifang Power Diesel generator set is Weifang Power Diesel generator set, which adopts R series diesel engine. It is a new generation of power jointly developed by China and Britain. It is divided into four cylinders, six cylinders and twelve cylinders. It is in-line, water-cooled and four stroke, The swirl (direct injection) high speed diesel engine, with cylinder diameter of 100 / 105 / 108 / 138mm, power coverage of 26.5-1800kw, speed of 1500-2800r / min. it has the characteristics of low fuel consumption, high torque, easy starting, low emission, small volume, high power, high reliability and convenient operation and maintenance. It is an ideal power for vehicle, construction machinery, generator set, ship, tractor and fixed power.

Weifang Power has continuously digested and absorbed foreign advanced technology. On the basis of introducing and developing the R series diesel engine from England, it has successively introduced advanced technology and equipment such as Italian Fiat casting process, German hotinger cold core shooting machine, German Leitz three coordinate measuring instrument, etc., so that the reliability and service life of R series diesel engine have reached the advanced level of similar products in the world.

Characteristics of Weifang Power Generating Set

1. The oil supply of power is upgraded from eddy current to direct injection: the combustion is more sufficient and suitable for the climate of various regions (the unit can be used normally in cold climate below 0 ° C).

2. Increase the cylinder diameter: the power is more sufficient, and the power generation capacity of the generator set is increased by 15%.

3. Enlarge the fuselage: more powerful, more durable, more durable.

4. production standard: the integration of international well-known power cooperation, the overall design is in accordance with the corresponding engine manufacturing related national standards.

Weifang Power Series units of each power section

30KW 40KW 50KW 60KW 75KW 100KW 120KW 150KW 200KW 250KW 300KW

Parameter list of each power section of Weifang Power Series Diesel Generator Set

Open type

Unit model:VGF-WFKJ-30
Main power:30KW	Reserve power:33KW
Current:54A	Diesel engine model:K4100D
Number of cylinders:6个	Bore x stroke:105*115mm
Fuel consumption power:218g/kw.h	Unit size:1650/1200/600mm L/W/H
Unit weight:580kg
Unit model:VGF-WFKJ-40
Main power:40KW	Reserve power:44KW
Current:72A	Diesel engine model:K4100ZD
Number of cylinders:6个	Bore x stroke:105*115mm
Fuel consumption power:218g/kw.h	Unit size:17500/600/1200mm L/W/H
Unit weight:620kg
Unit model:VGF-WFKJ-50
Main power:56KW	Reserve power:61.6KW
Current:100A	Diesel engine model:ZH4105ZD
Number of cylinders:4个	Bore x stroke:105*115mm
Fuel consumption power:231g/kw.h	Unit size:1800/1250/650mm L/W/H
Unit weight:720kg
Unit model:VGF-WFKJ-60
Main power:60KW	Reserve power:66KW
Current:108A	Diesel engine model:R4105ZLD
Number of cylinders:6个	Bore x stroke:105*115mm
Fuel consumption power:218g/kw.h	Unit size:2200/1350/750mm L/W/H
Unit weight:1100kg
Unit model:VGF-WFKJ-75
Main power:84KW	Reserve power:92KW
Current:151A	Diesel engine model:R6105AZD
Number of cylinders:6个	Bore x stroke:105*125mm
Fuel consumption power:231g/kw.h	Unit size:2200/1350/750mm L/W/H
Unit weight:1100kg
Unit model:VGF-WFKJ-100
Main power:121KW	Reserve power:133 KW
Current:217A	Diesel engine model:R6105AZLD
Number of cylinders:6个	Bore x stroke:105*130mm
Fuel consumption power:231g/kw.h	Unit size:2300/1380/750mm L/W/H
Unit weight:1300kg
Unit model:VGF-WFKJ-120
Main power:132KW	Reserve power:145KW
Current:237A	Diesel engine model:R6105IZLD
Number of cylinders:6个	Bore x stroke:105*135mm
Fuel consumption power:231g/kw.h	Unit size:2300/1380/750mm L/W/H
Unit weight:1400kg
Unit model:VGF-WFKJ-150
Main power:175KW	Reserve power:192KW
Current:315A	Diesel engine model:R6110ZLD
Number of cylinders:6个	Bore x stroke:110*135mm
Fuel consumption power:231g/kw.h	Unit size:2450/1430/800mm L/W/H
Unit weight:1650kg
Unit model:VGF-WFKJ-200
Main power:220KW	Reserve power:242KW
Current:396A	Diesel engine model:R6126ZLD
Number of cylinders:6个	Bore x stroke:126*130mm
Fuel consumption power:218g/kw.h	Unit size:3000/1520/1000mm L/W/H
Unit weight:2350kg
Unit model:VGF-WFKJ-250
Main power:283KW	Reserve power:311KW
Current:509A	Diesel engine model:R6126IZLD
Number of cylinders:6个	Bore x stroke:126*130mm
Fuel consumption power:218g/kw.h	Unit size:3000/1550/1000mm L/W/H
Unit weight:2550kg
Unit model:VGF-WFKJ-300
Main power:321KW	Reserve power:353KW
Current:577A	Diesel engine model:618ZLD
Number of cylinders:6个	Bore x stroke:126*155mm
Fuel consumption power:218g/kw.h	Unit size:3100/1550/1050mm L/W/H
Unit weight:2850kg

Unit model	Output power（KW）		Current（A）	Diesel engine model	Number of cylinders	Bore x stroke（mm）	Fuel consumption power（g/kw.h ）	Unit size（mm L/W/H ）	Unit weight（kg）
Unit model	Active	Spare	Current（A）	Diesel engine model	Number of cylinders	Bore x stroke（mm）	Fuel consumption power（g/kw.h ）	Unit size（mm L/W/H ）	Unit weight（kg）
VGF-WFKJ-30	30	33	54	K4100D	6	105*115	218	1650/1200/600	580
VGF-WFKJ-40	40	44	72	K4100ZD	6	105*115	218	17500/600/1200	620
VGF-WFKJ-50	56	61.6	100	ZH4105ZD	4	105*115	231	1800/1250/650	720
VGF-WFKJ-60	60	66	108	R4105ZLD	6	105*115	218	2200/1350/750	1100
VGF-WFKJ-75	84	92	151	R6105AZD	6	105*125	231	2200/1350/750	1100
VGF-WFKJ-100	121	133	217	R6105AZLD	6	105*130	231	2300/1380/750	1300
VGF-WFKJ-120	132	145	237	R6105IZLD	6	105*135	231	2300/1380/750	1400
VGF-WFKJ-150	175	192	315	R6110ZLD	6	110*135	231	2450/1430/800	1650
VGF-WFKJ-200	220	242	396	R6126ZLD	6	126*130	218	3000/1520/1000	2350
VGF-WFKJ-250	283	311	509	R6126IZLD	6	126*130	218	3000/1550/1000	2550
VGF-WFKJ-300	321	353	577	618ZLD	6	126*155	218	3100/1550/1050	2850

30KW 40KW 50KW 60KW 75KW 100KW 120KW 150KW 200KW 250KW 300KW

潍柴系列柴油发电机组各功率段参数列表

Silent type

Unit model:VGF-WFJY-30
Main power:30KW	Reserve power:30KW
Current:54A	Diesel engine model:K4100D
Number of cylinders:6个	Bore x stroke:105*115mm
Fuel consumption power:218g/kw.h	Unit size:2100/960/1280mm L/W/H
Unit weight:830kg
Unit model:VGF-WFJY-40
Main power:40KW	Reserve power:44KW
Current:72A	Diesel engine model:K4100ZD
Number of cylinders:6个	Bore x stroke:105*115mm
Fuel consumption power:218g/kw.h	Unit size:2100/1290/980mm L/W/H
Unit weight:890kg
Unit model:VGF-WFJY-50
Main power:56KW	Reserve power:61.6KW
Current:100A	Diesel engine model:ZH4105ZD
Number of cylinders:4个	Bore x stroke:105*115mm
Fuel consumption power:231g/kw.h	Unit size:2300/1350/1000mm L/W/H
Unit weight:1020kg
Unit model:VGF-WFJY-60
Main power:60KW	Reserve power:60KW
Current:108A	Diesel engine model:R4105ZLD
Number of cylinders:6个	Bore x stroke:105*115mm
Fuel consumption power:218g/kw.h	Unit size:2700/1550/1100mm L/W/H
Unit weight:1650kg
Unit model:VGF-WFJY-75
Main power:84KW	Reserve power:92KW
Current:151A	Diesel engine model:R6105AZD
Number of cylinders:6个	Bore x stroke:105*125mm
Fuel consumption power:231g/kw.h	Unit size:2700/1550/1100mm L/W/H
Unit weight:1650kg
Unit model:VGF-WFJY-100
Main power:121KW	Reserve power:133KW
Current:217A	Diesel engine model:R6105AZLD
Number of cylinders:6个	Bore x stroke:105*130mm
Fuel consumption power:231g/kw.h	Unit size:2900/1550/1200mm L/W/H
Unit weight:1720kg
Unit model:VGF-WFJY-120
Main power:132KW	Reserve power:145KW
Current:237A	Diesel engine model:R6105IZLD
Number of cylinders:6个	Bore x stroke:105*135mm
Fuel consumption power:231g/kw.h	Unit size:2900/1550/1200mm L/W/H
Unit weight:1860kg
Unit model:VGF-WFJY-150
Main power:170KW	Reserve power:187KW
Current:306A	Diesel engine model:R6110ZLD
Number of cylinders:6个	Bore x stroke:110*135mm
Fuel consumption power:231g/kw.h	Unit size:3250/1650/1250mm L/W/H
Unit weight:2200kg
Unit model:VGF-WFJY-200
Main power:220KW	Reserve power:242KW
Current:396A	Diesel engine model:R6126ZLD
Number of cylinders:6个	Bore x stroke:126*130mm
Fuel consumption power:218g/kw.h	Unit size:3600/1800/1300mm L/W/H
Unit weight:3050kg
Unit model:VGF-WFJY-250
Main power:283KW	Reserve power:311KW
Current:509A	Diesel engine model:R6126IZLD
Number of cylinders:6个	Bore x stroke:126*130mm
Fuel consumption power:218g/kw.h	Unit size:3600/1800/1300mm L/W/H
Unit weight:3350kg
Unit model:VGF-WFJY-300
Main power:321KW	Reserve power:353KW
Current:577A	Diesel engine model:618ZLD
Number of cylinders:6个	Bore x stroke:126*155mm
Fuel consumption power:218g/kw.h	Unit size:3900/1900/1300mm L/W/H
Unit weight:3900kg

Unit model	Output power（KW）		Current（A）	Diesel engine model	Number of cylinders	Bore x stroke（mm）	Fuel consumption power（g/kw.h ）	Unit size（mm L/W/H ）	Unit weight（kg）
Unit model	Active	Spare	Current（A）	Diesel engine model	Number of cylinders	Bore x stroke（mm）	Fuel consumption power（g/kw.h ）	Unit size（mm L/W/H ）	Unit weight（kg）
VGF-WFJY-30	30	30	54	K4100D	6	105*115	218	2100/960/1280	830
VGF-WFJY-40	40	44	72	K4100ZD	6	105*115	218	2100/1290/980	890
VGF-WFJY-50	56	61.6	100	ZH4105ZD	4	105*115	231	2300/1350/1000	1020
VGF-WFJY-60	60	60	108	R4105ZLD	6	105*115	218	2700/1550/1100	1650
VGF-WFJY-75	84	92	151	R6105AZD	6	105*125	231	2700/1550/1100	1650
VGF-WFJY-100	121	133	217	R6105AZLD	6	105*130	231	2900/1550/1200	1720
VGF-WFJY-120	132	145	237	R6105IZLD	6	105*135	231	2900/1550/1200	1860
VGF-WFJY-150	170	187	306	R6110ZLD	6	110*135	231	3250/1650/1250	2200
VGF-WFJY-200	220	242	396	R6126ZLD	6	126*130	218	3600/1800/1300	3050
VGF-WFJY-250	283	311	509	R6126IZLD	6	126*130	218	3600/1800/1300	3350
VGF-WFJY-300	321	353	577	618ZLD	6	126*155	218	3900/1900/1300	3900
